| Price View | Price Range |
|---|---|
| Product Group | 467092 |
| End Standard | DIN 2633 |
| Face To Face Standard | EN 558, series 1 |
| Inspection Standard | EN 12266 |
| Remark | Connection: PN16 |
| Throughput Direction | Straight |
| Variant | SDSL |
| Pressure Rating | PN16 |
| End Type | Flanged |
| Design Code | ASME B16.34 |
| Standard | DIN |
| Application | Boiler feedwater, Cargo oil, Condensate, Corrosive fluids, Flammable hydraulic oil, Fuel oil, Lubricating oil, Non-flammable hydraulic fluid, Sea Water, Steam, Thermal oil, Water |
| Size | 50 |
| Material Disc | Stainless Steel, 316 |
| Material Body | Stainless Steel, 316 |

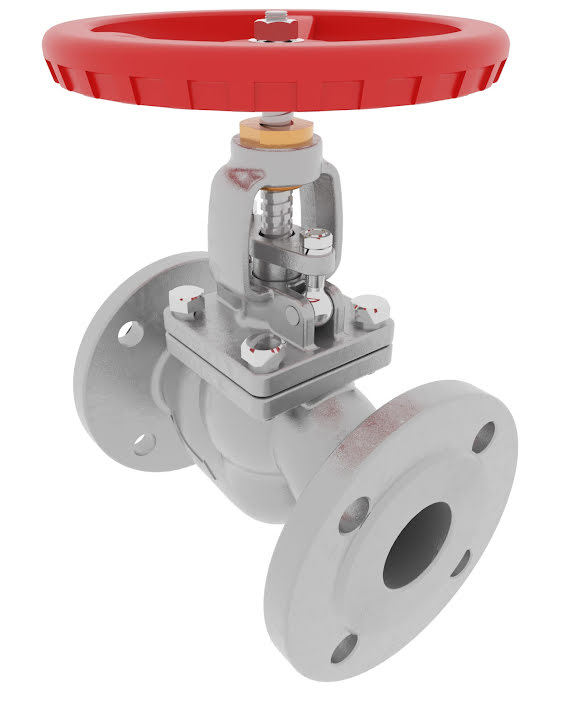

Globe Valve DN50 PN16
Straight type – SDSL
Details
Straight type, Stainless Steel body, metal seated globe valve with rising stem and bolted bonnet. Raised face flanges.

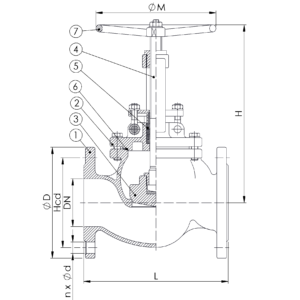

PARTSLIST AND DETAILS
Partslist
| No | Part | Material | Code |
|---|---|---|---|
| 1 | Body | Stainless Steel | 1.4408 |
| 2 | Bonnet | Stainless Steel | 1.4408 |
| 3 | Disc | Stainless Steel | 1.4408 |
| 4 | Stem | Stainless Steel | SUS 316 |
| 5 | Gland packing | PTFE | |
| 6 | Gasket | PTFE | |
| 7 | Handwheel | Cast Iron | FCD 400 |
Details
| DN | Pressure Rating Id | nxdd | Hcd |
|---|---|---|---|
| 50 | 16 | 4×18 | 125 |
| ØD | L | Kg | H | ØM |
|---|---|---|---|---|
| 165 | 230 | 12.2 | 252 | 200 |
