| Price View | Price Range |
|---|---|
| Product Group | 457522 |
| End Standard | EN 1092-3 |
| Execution | Angled |
| Variant | SDNR |
| Pressure Rating | PN16 |
| End Type | Flanged |
| Bonnet Connection | Bolted |
| Working Pressure | Max. 10 bar up to 225°C (steam up to 180°C), Max. 16 bar (up to 120°C) |
| Standard | DIN |
| Remark | For temperatures up to 225°C, steam up to 180°C |
| Application | Boiler feedwater, Cargo oil, Condensate, Flammable hydraulic oil, Fuel oil, Lubricating oil, Non-flammable hydraulic fluid, Sea Water, Steam, Water |
| Size | 50 |
| Material Disc | Bronze |
| Material Body | Bronze |
Globe Valve DN50 PN16
Angled Type, Flanged Connection – SDNR Disc
Details
Globe valve with shut off, regulating or screw down non return (SDNR) function. A shorter face to face version of our angled, rising stem globe valve 458922 with bolted bonnet and metal sealing. For warm sea water it is recommended to use a stem of zinc free bronze, CuSn6.
PARTSLIST AND DETAILS

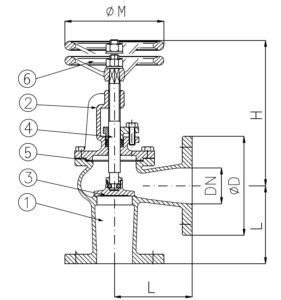

Partslist
| No | Part | Material | Code |
|---|---|---|---|
| 1 | Body | Bronze | CC491K (RG5) |
| 2 | Bonnet | Bronze | CC491K (RG5) |
| 3 | Disc | Bronze | CC491K (RG5) |
| 4 | Stem | Special Brass | CW710R (SoMs59) |
| 5 | Bonnet Sealing | NBR Bonded Aramid | |
| 6 | Handwheel | Steel Plate |
Details
| DN | Pressure Rating | Connection | L |
|---|---|---|---|
| 50 | PN 16 | PN 16 | 105 |
| D | H | M | Kv | Kg |
|---|---|---|---|---|
| 165 | 190 | 120 | 51 | 8.8 |
