| Price View | Price Range |
|---|---|
| Product Group | 456622 |
| Execution | Straight |
| Pressure Rating | PN16 |
| End Type | Threaded |
| Bonnet Connection | Screwed, Secured |
| Working Pressure | Max. 10 bar up to 225°C (steam up to 180°C), Max. 16 bar (up to 120°C) |
| Standard | DIN |
| Remark | For temperatures up to 225°C, steam up to 180°C |
| Application | Boiler feedwater, Condensate, Flammable hydraulic oil, Fuel oil, Lubricating oil, Sea Water, Steam, Water |
| Size | 50 |
| Material Disc | Bronze |
| Material Body | Bronze |

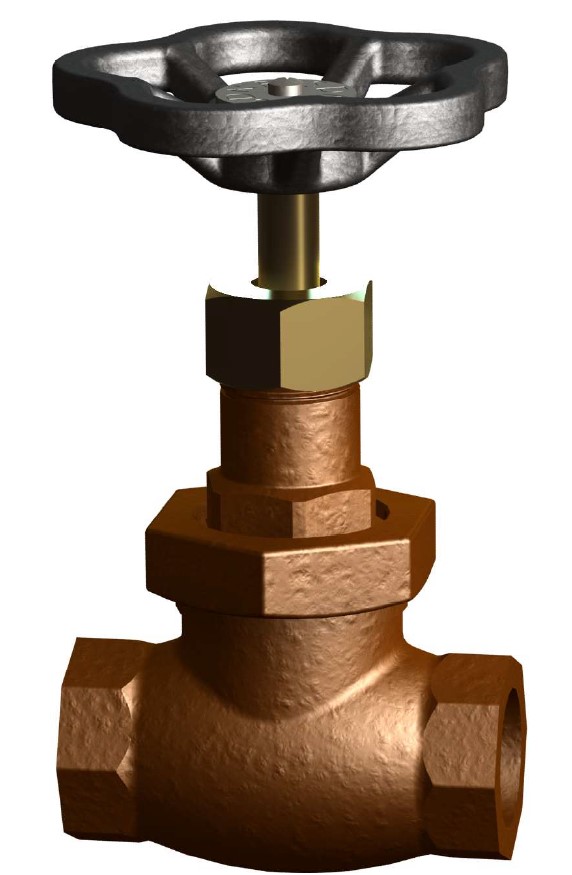

Globe Valve DN50 PN16
Straight Type, Threaded Connection – Stop Valve
Details
Globe valve with shut off or screw down non return (SDNR) function. Straight, rising stem type with female threaded ends, screwed and secured bonnet as well as PTFE sealing. For warm seawater it is recommended to use a stem of zinc free bronze, CuSn6.
PARTSLIST AND DETAILS

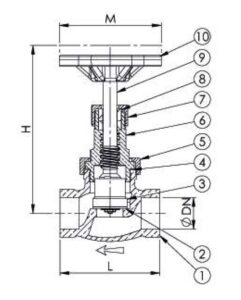

Partslist
| No | Part | Material | Code |
|---|---|---|---|
| 1 | Body | Bronze | CC491K (RG5) |
| 2 | Sealing | PTFE | |
| 3 | Disc | Bronze | CC491K (RG5) |
| 4 | Sealing | PTFE | |
| 5 | Locking Nut | Bronze | CC491K (RG5) |
| 6 | Bonnet | Bronze | CC491K (RG5) |
| 7 | Gland | Brass | CW614N (Ms58) |
| 8 | Gland Nut | Brass | CW614N (Ms58) |
| 9 | Stem | Special Brass | CW710R (SoMs59) |
| 10 | Handwheel | Cast Iron | EN-JL1040 (GG25) |
Details
| DN | Pressure Rating | Connection (BSP) | L |
|---|---|---|---|
| 50 | PN 16 | G 2″ | 160 |
| H | M | Kv | Kg |
|---|---|---|---|
| 165 | 120 | 33 | 4.1 |
