| Mounting Bracket | ISO 5211 – F16 |
| Working Pressure | 10.3 MPa acc. to EN 15714-4 |
| Seal | Viton O-Rings |
| Min temperature | -40°C |
| Max temperature | +145°C |
| Hydraulic Oil | Viscosity range 15 to 64 cSt. acc. to thermal environment |
| Rotation | 90° ± 3° |
| Closing Direction | Clockwise |
| Painting | 1-comp. thick film epoxy coat |
| Male stud coupling | OD8 to OD12 |
| Size | 80 |
Hydraulic Actuator Single Acting Type SHA/S80
Single-acting type hydraulic actuator. Viton O-Rings.
Details
Single-acting type hydraulic actuator. Viton O-Rings.

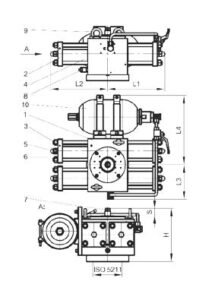

PARTSLIST AND DETAILS
Partslist
| No | Part | Material | Code |
|---|---|---|---|
| 1 | Body | Cast Iron | EN-GJS400-15 |
| 2 | Cover | Cast Iron | EN-GJS400-15 |
| 3 | Tie Bolts | Steel | 42CrMo4 |
| 4 | Cylinder | Steel | S355J2 |
| 5 | Cap Nuts | Stainless Steel | |
| 6 | Hexagonal Nuts | Stainless Steel | |
| 7 | Shaft | Stainless Steel | X8CrNiS 18-9 |
| 8 | Check Valve | Stainless Steel | |
| 9 | Lifting Eyes | Steel | |
| 10 | Pressure Vessel | Steel | 34CrMo4 |
Details
| Size |
Torque (Nm) for control pressure 10.5MPa |
Stroke Volume (cm3) |
L1 |
L2 |
|
|---|---|---|---|---|---|
| Open | Close | ||||
| 80 SC | 1430 | 1170 | 473 | 282 | 282 |
| 80 SO | 1170 | 1430 | 473 | 282 | 282 |
| L3 |
L4 | H | S | Kg |
|---|---|---|---|---|
| 169 | 305 | 263 | 36 | 111 |
| 169 | 305 | 263 | 36 | 111 |

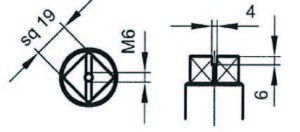

Shaft Connection
| sq |
Lmax | ||||
|---|---|---|---|---|---|
| 24 | 27 | 30 | 36 | 40 | 60 |
All Shaft Ends:
For valves with square shaft end
0° and 45°
