| Price View | Price Range |
|---|---|
| Protection | IP67 |
| Ambient Temperature | -20°C~60°C |
| Conduit Entry | M20x1,5(PT1/2",PF1/2",NPT1/2") |
| Terminal | 8 Contacts |
| Mounting Bracket | ISO 5211, NAMUR VDI / VDE 3845 |
| Material Body | Die Casting Aluminium |
| Weight | 0.5Kg (1 lb) |

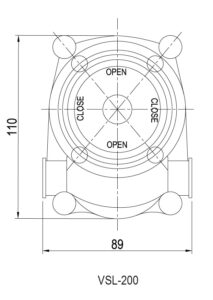

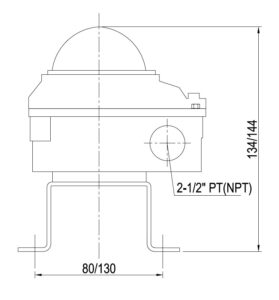

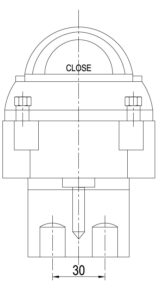

Limit Switch VSL-200
VSL-200
Details
PARTSLIST
| No | Part | Material | Code |
|---|---|---|---|
| 1 | Housing | Low Copper Aluminium Die-Casting | |
| 2 | Coating | Epoxy-Polyester | |
| 3 | Sealing | NBR O-Rings on each Interface | |
| 4 | Cams | Poly-Carbonate | |
| 5 | Bushings | Bronze | |
| 6 | Shaft | Stainless Steel | AISI304 |
| 7 | Earth Lug | Stainless Steel | |
| 8 | Mounting Bracket | Stainless Steel | AISI304 |
