| Price View | Price Range |
|---|---|
| Product Group | 475693 |
| End Standard | ISO 228-1 |
| Min temperature | -60°C |
| Max temperature | +250°C |
| Throughput Direction | Angled |
| Pressure Rating | PN25 |
| End Type | Threaded |
| Design Code | ISO 4126-1 |
| Standard | DIN |
| Application | Air, Boiler feedwater, Cargo oil, Condensate, Flammable hydraulic oil, Fuel oil, Gas, Lubricating oil, Non-flammable hydraulic fluid, Sea Water, Steam, Thermal oil, Water |
| Size | 15 |
| Material Seat | Stainless Steel, 316 |
| Material Disc | PTFE |
| Material Body | Stainless Steel, 316 |

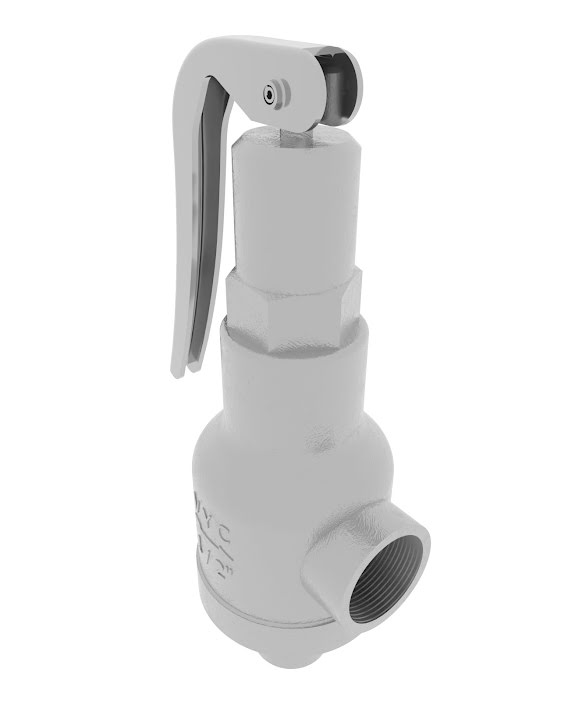

Safety Valve ½” PN25
Angled type – set pressure 9 bar
Details
Angled type, Stainless Steel body PTFE seated proportional safety relief valve. Pressure preset and sealed. Threaded male BSPP inlet and female BSPP outlet.
PARTSLIST AND DETAILS

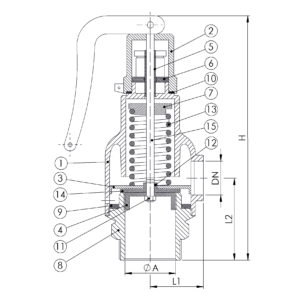

Partslist
| No | Part | Material | Code |
|---|---|---|---|
| 1 | Body | Stainless Steel | 1.4408 |
| 2 | Cap | Stainless Steel | 1.4308 |
| 3 | Coupling | Stainless Steel | 1.4401 |
| 4 | Lead | Stainless Steel | 1.4401 |
| 5 | Hollow Screw | Stainless Steel | 1.4305 |
| 6 | Hollow Screw Nut | Stainless Steel | 1.4305 |
| 7 | Spring Press | Stainless Steel | 1.4301 |
| 8 | Screwed Seat | Stainless Steel | 1.4408 |
| 9 | Body Coupling | PTFE | |
| 10 | Hood Coupling | PTFE | |
| 11 | Nut | Stainless Steel | 1.4401 |
| 12 | Clip | Stainless Steel | 1.4310 |
| 13 | Spring | Stainless Steel | 1.4310 |
| 14 | Sealing Disc | PTFE | |
| 15 | Stem | Stainless Steel | 1.4301 |
Details
| DN | Pressure Rating Id | Kg | L1 | Inch | H | L2 | ØA |
|---|---|---|---|---|---|---|---|
| 15 | 25 | 0.6 | 32 | 1/2″ | 140 | 52 | 16.2 |
