| Product Group | 358002 |
| End Standard | EN 1092-2 |
| Face To Face Standard | EN 558, series 1 |
| Remark | Connection: PN16 |
| Min temperature | -10°C |
| Max temperature | +120°C |
| Throughput Direction | Straight |
| Pressure Rating | PN16 |
| End Type | Flanged |
| Design Code | DIN 86251 |
| Standard | DIN |
| Application | Boiler feedwater, Cargo oil, Condensate, Flammable hydraulic oil, Fuel oil, Lubricating oil, Non-flammable hydraulic fluid, Sea Water, Thermal oil, Water |
| Size | 20 |
| Material Seat | Stainless Steel, 304 |
| Material Disc | Stainless Steel, 420 |
| Material Body | Nodular Cast Iron, GGG40.3 |

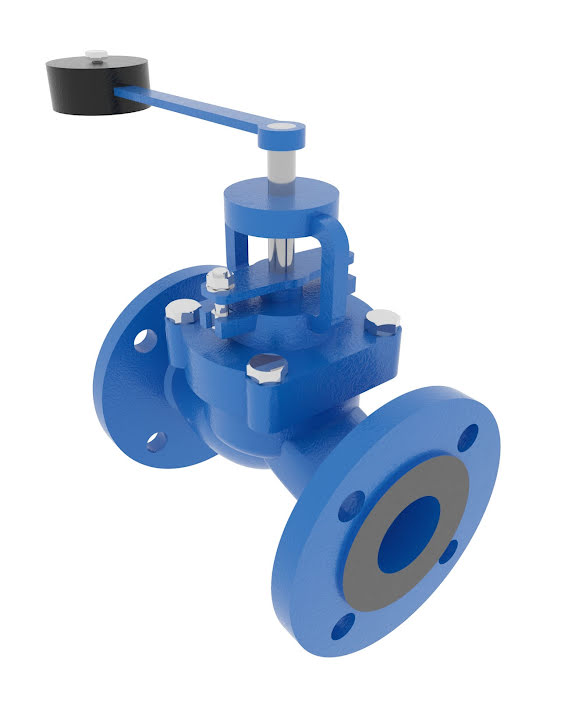

Self Closing Valve DN20 PN16
with lever and counter weight
Details
Straight type, Nodular Cast Iron, metal seated, self closing globe valve. Bolted bonnet and lever with counter weight. Raised face flanges.

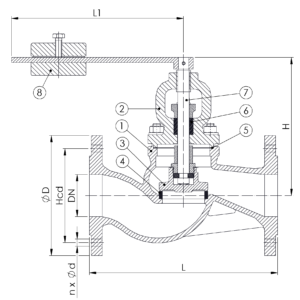

PARTSLIST AND DETAILS
Partslist
| No | Part | Material | Code |
|---|---|---|---|
| 1 | Body | Nodular Cast Iron | GGG40.3 |
| 2 | Bonnet | Nodular Cast Iron | GGG40.3 |
| 3 | Disc | Stainless Steel | 1.4021 |
| 4 | Seat | Stainless Steel | 1.4301 |
| 5 | Bonnet Gasket | Graphite | |
| 6 | Gland Packing | Graphite | |
| 7 | Stem | Stainless Steel | 1.4021 |
| 8 | Lever & Counter Weight | Steel | St37 |
Details
| DN | Pressure Rating Id | nxdd | Hcd |
|---|---|---|---|
| 20 | 16 | 4×14 | 75 |
| ØD | L | Kg | L1 | H |
|---|---|---|---|---|
| 105 | 150 | 6 | 245 | 160 |
