| Price View | Price Range |
|---|---|
| Product Group | 370262 |
| End Standard | EN 1092-1 |
| Face To Face Standard | EN 558, series 48 |
| Inspection Standard | EN 12266 |
| Remark | Connection: PN16 |
| Throughput Direction | Straight |
| Pressure Rating | PN16 |
| End Type | Flanged |
| Design Code | BS 1868 |
| Standard | DIN |
| Application | Boiler feedwater, Cargo oil, Condensate, Flammable hydraulic oil, Fuel oil, Lubricating oil, Non-flammable hydraulic fluid, Sea Water, Water |
| Size | 400 |
| Material Seat | Stainless Steel, 420 |
| Material Disc | Cast Steel |
| Material Body | Cast Steel |

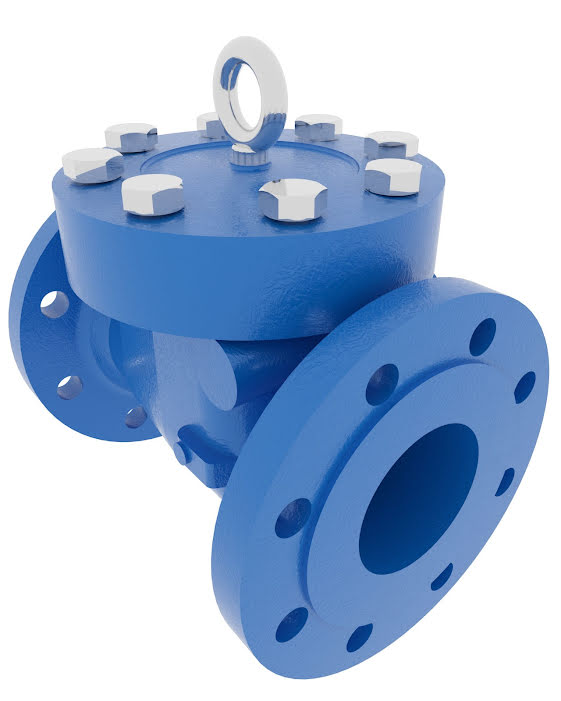

Swing Check Valve DN400 PN16
Swing check valve DN400 PN16
Details
Cast Steel body, full bore swing check valve with Cast Steel disc and Stainless Steel seat. Raised face flanges.

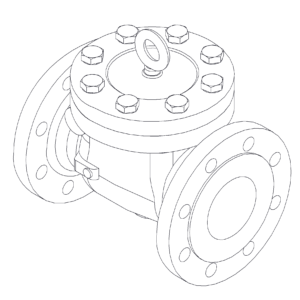

PARTSLIST AND DETAILS

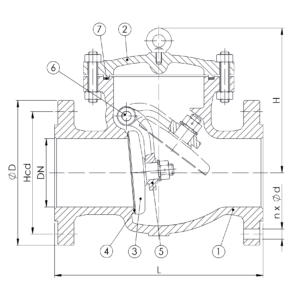

Partslist
| No | Part | Material | Code |
|---|---|---|---|
| 1 | Body | Cast Steel | ASTM A216-WCB |
| 2 | Bonnet | Cast Steel | ASTM A216-WCB |
| 3 | Disc | Cast Steel | ASTM A216-WCB |
| 4 | Seat | Stainless Steel | Deposited 13Cr |
| 5 | Hinge | Cast Steel | ASTM A216-WCB |
| 6 | Hinge pin | Stainless Steel | ASTM A276-420 |
| 7 | Gasket | Graphite |
Details
| DN | Pressure Rating Id | 5nxdd | Hcd | ØD | L | Kg | H |
|---|---|---|---|---|---|---|---|
| 400 | 16 | 16×30 | 525 | 580 | 900 | 461 | 468 |
