| Price View | Price Range |
|---|---|
| Product Group | 320022 |
| End Standard | ISO 228-1 |
| Inspection Standard | EN 12266 |
| Min temperature | -10°C |
| Max temperature | +180°C |
| Throughput Direction | Straight |
| Pressure Rating | PN16 |
| End Type | Threaded |
| Standard | DIN |
| Application | Air, Boiler feedwater, Cargo oil, Condensate, Flammable hydraulic oil, Fuel oil, Gas, Lubricating oil, Non-flammable hydraulic fluid, Sea Water, Steam, Water |
| Size | 10 |
| Material Disc | Brass |
| Material Body | Bronze |

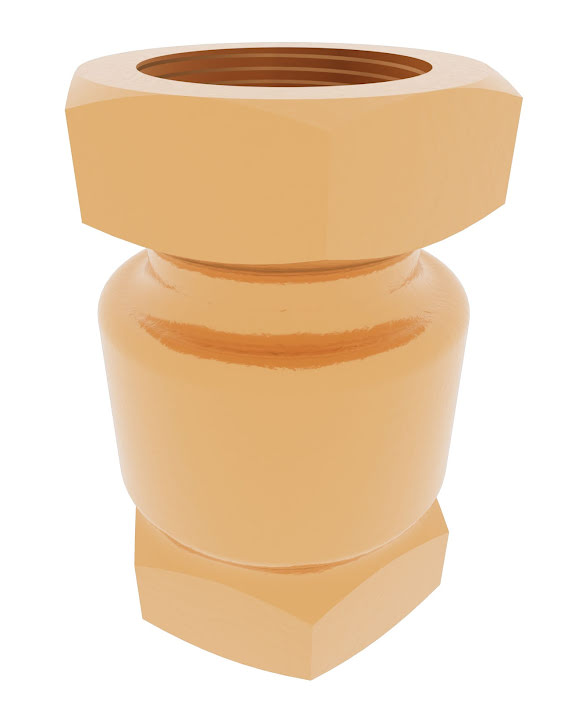

Vertical Check Valve 3/8″ PN16
Details
RG5 body vertical check valve with metal sealing. BSPP female threaded ends.

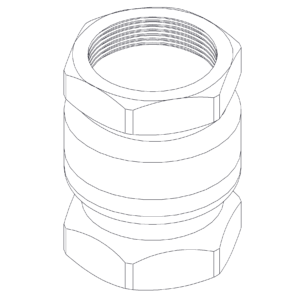

PARTSLIST AND DETAILS
Partslist
| No | Part | Material | Code |
|---|---|---|---|
| 1 | Body | Bronze | CC 491K |
| 2 | Disc | Brass | CW 614N |
| 3 | Ring nut | Brass | CW 614N |
Details
| DN | Pressure Rating Id | ØD | L | Kg | Inch | ØA |
|---|---|---|---|---|---|---|
| 10 | 16 | 34 | 55 | 0.3 | 3/8″ | 10 |
