Name & Description	Material	Standard
Butterfly Valve L DN600 PN10 Item No.: M33564 Lug type - bare stem	Seat: FPM/FKM Body: Nodular Cast Iron, GGG40 Disc: Aluminium Bronze	Standard: DIN Pressure Rating: PN10 End Type: Lug
Butterfly Valve L DN500 PN10 Item No.: M33563 Lug type - bare stem	Seat: FPM/FKM Body: Nodular Cast Iron, GGG40 Disc: Aluminium Bronze	Standard: DIN Pressure Rating: PN10 End Type: Lug
Butterfly Valve L DN400 PN10 Item No.: M33561 Lug type - bare stem	Seat: FPM/FKM Body: Nodular Cast Iron, GGG40 Disc: Aluminium Bronze	Standard: DIN Pressure Rating: PN10 End Type: Lug
Butterfly Valve L DN350 PN10 Item No.: M33560 Lug type - bare stem	Seat: FPM/FKM Body: Nodular Cast Iron, GGG40 Disc: Aluminium Bronze	Standard: DIN Pressure Rating: PN10 End Type: Lug
Butterfly Valve L DN300 PN10 Item No.: M33559 Lug type - bare stem	Seat: FPM/FKM Body: Nodular Cast Iron, GGG40 Disc: Aluminium Bronze	Standard: DIN Pressure Rating: PN10 End Type: Lug
Butterfly Valve L DN250 PN10 Item No.: M33558 Lug type - bare stem	Seat: FPM/FKM Body: Nodular Cast Iron, GGG40 Disc: Aluminium Bronze	Standard: DIN Pressure Rating: PN10 End Type: Lug
Butterfly Valve L DN200 PN10 Item No.: M33557 Lug type - bare stem	Seat: FPM/FKM Body: Nodular Cast Iron, GGG40 Disc: Aluminium Bronze	Standard: DIN Pressure Rating: PN10 End Type: Lug
Butterfly Valve W DN150 PN16 Item No.: M34151 Wafer type - with lever	Seat: FPM/FKM Body: Nodular Cast Iron, GGG40 Disc: Aluminium Bronze	Standard: DIN Pressure Rating: PN16 End Type: Wafer
Butterfly Valve W DN125 PN16 Item No.: M34150 Wafer type - with lever	Seat: FPM/FKM Body: Nodular Cast Iron, GGG40 Disc: Aluminium Bronze	Standard: DIN Pressure Rating: PN16 End Type: Wafer
Butterfly Valve W DN100 PN16 Item No.: M34149 Wafer type - with lever	Seat: FPM/FKM Body: Nodular Cast Iron, GGG40 Disc: Aluminium Bronze	Standard: DIN Pressure Rating: PN16 End Type: Wafer
Butterfly Valve W DN80 PN16 Item No.: M34148 Wafer type - with lever	Seat: FPM/FKM Body: Nodular Cast Iron, GGG40 Disc: Aluminium Bronze	Standard: DIN Pressure Rating: PN16 End Type: Wafer
Butterfly Valve W DN65 PN16 Item No.: M34147 Wafer type - with lever	Seat: FPM/FKM Body: Nodular Cast Iron, GGG40 Disc: Aluminium Bronze	Standard: DIN Pressure Rating: PN16 End Type: Wafer
Butterfly Valve W DN50 PN16 Item No.: M34146 Wafer type - with lever	Seat: FPM/FKM Body: Nodular Cast Iron, GGG40 Disc: Aluminium Bronze	Standard: DIN Pressure Rating: PN16 End Type: Wafer
Butterfly Valve W DN40 PN16 Item No.: M34145 Wafer type - with lever	Seat: FPM/FKM Body: Nodular Cast Iron, GGG40 Disc: Aluminium Bronze	Standard: DIN Pressure Rating: PN16 End Type: Wafer
710901 Butterfly valve L DN150 Item No.: M35547 Lug type with lever	Seat: NBR Body: Nodular Cast Iron, GGG40 Disc: Stainless Steel, 316	Standard: JIS Pressure Rating: JIS 5K End Type: Lug

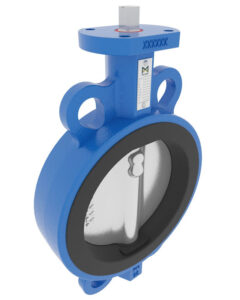

Butterfly Valve W DN400 PN10 Item No.: 40-00002358 Wafer type - bare stem	Seat: EPDM Body: Nodular Cast Iron, GGG40 Disc: Stainless Steel, Super Duplex	Standard: DIN Pressure Rating: PN10 End Type: Wafer

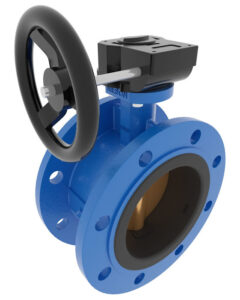

Butterfly Valve DF DN600 PN10 Item No.: M36209 Double flange type - with gearbox	Seat: NBR Body: Nodular Cast Iron, GGG40 Disc: Aluminium Bronze	Standard: DIN Pressure Rating: PN10 End Type: Double flange

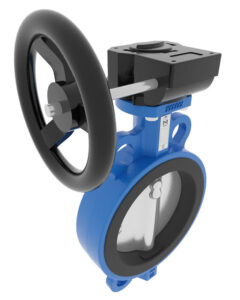

Butterfly Valve W DN300 PN16 Item No.: M34830 Wafer type - with gearbox	Seat: NBR Body: Nodular Cast Iron, GGG40 Disc: Stainless Steel, 316	Standard: DIN Pressure Rating: PN16 End Type: Wafer
Butterfly valve W DN150 PN10 Item No.: 40-00001907 Wafer type - with lever	Seat: PTFE Body: Nodular Cast Iron, GGG40.3 Disc: PTFE	Standard: DIN Pressure Rating: PN10 End Type: Wafer
Butterfly valve W DN125 PN10 Item No.: 40-00001906 Wafer type - with lever	Seat: PTFE Body: Nodular Cast Iron, GGG40.3 Disc: PTFE	Standard: DIN Pressure Rating: PN10 End Type: Wafer
