Name & Description	Material	Standard
Butterfly Valve DF DN150 PN16 Item No.: M34693 Double flange type - bare stem	Seat: NBR Body: Nodular Cast Iron, GGG40 Disc: Stainless Steel, 316	Standard: DIN Pressure Rating: PN16 End Type: Double flange
Butterfly Valve DF DN125 PN16 Item No.: M34692 Double flange type - bare stem	Seat: NBR Body: Nodular Cast Iron, GGG40 Disc: Stainless Steel, 316	Standard: DIN Pressure Rating: PN16 End Type: Double flange
Butterfly Valve DF DN100 PN16 Item No.: M34691 Double flange type - bare stem	Seat: NBR Body: Nodular Cast Iron, GGG40 Disc: Stainless Steel, 316	Standard: DIN Pressure Rating: PN16 End Type: Double flange
Butterfly Valve DF DN80 PN16 Item No.: M34690 Double flange type - bare stem	Seat: NBR Body: Nodular Cast Iron, GGG40 Disc: Stainless Steel, 316	Standard: DIN Pressure Rating: PN16 End Type: Double flange
Butterfly Valve DF DN65 PN16 Item No.: M34689 Double flange type - bare stem	Seat: NBR Body: Nodular Cast Iron, GGG40 Disc: Stainless Steel, 316	Standard: DIN Pressure Rating: PN16 End Type: Double flange

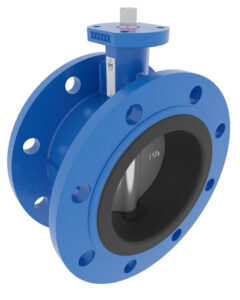

Butterfly Valve DF DN50 PN16 Item No.: M34688 Double flange type - bare stem	Seat: NBR Body: Nodular Cast Iron, GGG40 Disc: Stainless Steel, 316	Standard: DIN Pressure Rating: PN16 End Type: Double flange
Butterfly Valve DF DN40 PN16 Item No.: M34687 Double flange type - bare stem	Seat: NBR Body: Nodular Cast Iron, GGG40 Disc: Stainless Steel, 316	Standard: DIN Pressure Rating: PN16 End Type: Double flange
Butterfly Valve DF DN500 PN10 Item No.: M34701 Double flange type - bare stem	Seat: NBR Body: Nodular Cast Iron, GGG40 Disc: Stainless Steel, 316	Standard: DIN Pressure Rating: PN10 End Type: Double flange
Butterfly Valve DF DN450 PN10 Item No.: M34700 Double flange type - bare stem	Seat: NBR Body: Nodular Cast Iron, GGG40 Disc: Stainless Steel, 316	Standard: DIN Pressure Rating: PN10 End Type: Double flange
Butterfly Valve DF DN400 PN10 Item No.: M34699 Double flange type - bare stem	Seat: NBR Body: Nodular Cast Iron, GGG40 Disc: Stainless Steel, 316	Standard: DIN Pressure Rating: PN10 End Type: Double flange
Butterfly Valve DF DN350 PN10 Item No.: M34698 Double flange type - bare stem	Seat: NBR Body: Nodular Cast Iron, GGG40 Disc: Stainless Steel, 316	Standard: DIN Pressure Rating: PN10 End Type: Double flange
Butterfly Valve DF DN40 JIS 10K Item No.: M35376 Double flange type - bare stem	Seat: EPDM Body: Nodular Cast Iron, GGG40 Disc: Stainless Steel, 316	Standard: JIS Pressure Rating: JIS 10K End Type: Double flange
Butterfly Valve DF DN40 PN16 Item No.: M34717 Double flange type - bare stem	Seat: EPDM Body: Nodular Cast Iron, GGG40 Disc: Stainless Steel, 316	Standard: DIN Pressure Rating: PN16 End Type: Double flange
Butterfly Valve DF DN50 PN16 Item No.: M34718 Double flange type - bare stem	Seat: EPDM Body: Nodular Cast Iron, GGG40 Disc: Stainless Steel, 316	Standard: DIN Pressure Rating: PN16 End Type: Double flange
Butterfly Valve DF DN65 PN16 Item No.: M34719 Double flange type - bare stem	Seat: EPDM Body: Nodular Cast Iron, GGG40 Disc: Stainless Steel, 316	Standard: DIN Pressure Rating: PN16 End Type: Double flange
Butterfly Valve DF DN80 PN16 Item No.: M34720 Double flange type - bare stem	Seat: EPDM Body: Nodular Cast Iron, GGG40 Disc: Stainless Steel, 316	Standard: DIN Pressure Rating: PN16 End Type: Double flange
Butterfly Valve DF DN100 PN16 Item No.: M34721 Double flange type - bare stem	Seat: EPDM Body: Nodular Cast Iron, GGG40 Disc: Stainless Steel, 316	Standard: DIN Pressure Rating: PN16 End Type: Double flange
Butterfly Valve DF DN125 PN16 Item No.: M34722 Double flange type - bare stem	Seat: EPDM Body: Nodular Cast Iron, GGG40 Disc: Stainless Steel, 316	Standard: DIN Pressure Rating: PN16 End Type: Double flange
Butterfly Valve DF DN150 PN16 Item No.: M34723 Double flange type - bare stem	Seat: EPDM Body: Nodular Cast Iron, GGG40 Disc: Stainless Steel, 316	Standard: DIN Pressure Rating: PN16 End Type: Double flange
Butterfly Valve DF DN200 PN16 Item No.: M34724 Double flange type - bare stem	Seat: EPDM Body: Nodular Cast Iron, GGG40 Disc: Stainless Steel, 316	Standard: DIN Pressure Rating: PN16 End Type: Double flange

BUTTERFLY VALVES
