Name & Description	Material	Standard
Butterfly Valve DF DN150 PN16 Item No.: M34708 Double flange type - bare stem	Seat: EPDM Body: Nodular Cast Iron, GGG40 Disc: Aluminium Bronze	Standard: DIN Pressure Rating: PN16 End Type: Double flange
Butterfly Valve DF DN200 PN16 Item No.: M34709 Double flange type - bare stem	Seat: EPDM Body: Nodular Cast Iron, GGG40 Disc: Aluminium Bronze	Standard: DIN Pressure Rating: PN16 End Type: Double flange
Butterfly Valve DF DN500 JIS 5K Item No.: M35320 Double flange type - bare stem	Seat: EPDM Body: Nodular Cast Iron, GGG40 Disc: Aluminium Bronze	Standard: JIS Pressure Rating: JIS 5K End Type: Double flange
Butterfly Valve DF DN450 JIS 5K Item No.: M35319 Double flange type - bare stem	Seat: EPDM Body: Nodular Cast Iron, GGG40 Disc: Aluminium Bronze	Standard: JIS Pressure Rating: JIS 5K End Type: Double flange
Butterfly Valve DF DN400 JIS 5K Item No.: M35318 Double flange type - bare stem	Seat: EPDM Body: Nodular Cast Iron, GGG40 Disc: Aluminium Bronze	Standard: JIS Pressure Rating: JIS 5K End Type: Double flange
Butterfly Valve DF DN300 JIS 5K Item No.: M35317 Double flange type - bare stem	Seat: EPDM Body: Nodular Cast Iron, GGG40 Disc: Aluminium Bronze	Standard: JIS Pressure Rating: JIS 5K End Type: Double flange
Butterfly Valve DF DN250 JIS 5K Item No.: M35316 Double flange type - bare stem	Seat: EPDM Body: Nodular Cast Iron, GGG40 Disc: Aluminium Bronze	Standard: JIS Pressure Rating: JIS 5K End Type: Double flange
Butterfly Valve DF DN200 JIS 5K Item No.: M35315 Double flange type - bare stem	Seat: EPDM Body: Nodular Cast Iron, GGG40 Disc: Aluminium Bronze	Standard: JIS Pressure Rating: JIS 5K End Type: Double flange
Butterfly Valve DF DN150 JIS 5K Item No.: M35314 Double flange type - bare stem	Seat: EPDM Body: Nodular Cast Iron, GGG40 Disc: Aluminium Bronze	Standard: JIS Pressure Rating: JIS 5K End Type: Double flange
Butterfly Valve DF DN125 JIS 5K Item No.: M35313 Double flange type - bare stem	Seat: EPDM Body: Nodular Cast Iron, GGG40 Disc: Aluminium Bronze	Standard: JIS Pressure Rating: JIS 5K End Type: Double flange
Butterfly Valve DF DN100 JIS 5K Item No.: M35312 Double flange type - bare stem	Seat: EPDM Body: Nodular Cast Iron, GGG40 Disc: Aluminium Bronze	Standard: JIS Pressure Rating: JIS 5K End Type: Double flange
Butterfly Valve DF DN80 JIS 5K Item No.: M35311 Double flange type - bare stem	Seat: EPDM Body: Nodular Cast Iron, GGG40 Disc: Aluminium Bronze	Standard: JIS Pressure Rating: JIS 5K End Type: Double flange

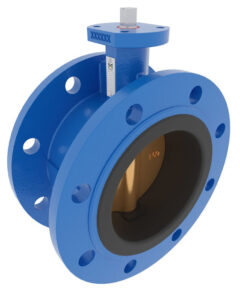

Butterfly Valve DF DN65 JIS 5K Item No.: M35310 Double flange type - bare stem	Seat: EPDM Body: Nodular Cast Iron, GGG40 Disc: Aluminium Bronze	Standard: JIS Pressure Rating: JIS 5K End Type: Double flange
Butterfly Valve DF DN50 JIS 5K Item No.: M35309 Double flange type - bare stem	Seat: EPDM Body: Nodular Cast Iron, GGG40 Disc: Aluminium Bronze	Standard: JIS Pressure Rating: JIS 5K End Type: Double flange
Butterfly Valve DF DN250 PN10 Item No.: M34711 Double flange type - bare stem	Seat: EPDM Body: Nodular Cast Iron, GGG40 Disc: Aluminium Bronze	Standard: DIN Pressure Rating: PN10 End Type: Double flange
Butterfly Valve DF DN200 PN10 Item No.: M34710 Double flange type - bare stem	Seat: EPDM Body: Nodular Cast Iron, GGG40 Disc: Aluminium Bronze	Standard: DIN Pressure Rating: PN10 End Type: Double flange
Butterfly Valve DF DN40 PN16 Item No.: M34747 Double flange type - bare stem	Seat: FPM/FKM Body: Nodular Cast Iron, GGG40 Disc: Stainless Steel, 316	Standard: DIN Pressure Rating: PN16 End Type: Double flange
Butterfly Valve DF DN50 PN16 Item No.: M34748 Double flange type - bare stem	Seat: FPM/FKM Body: Nodular Cast Iron, GGG40 Disc: Stainless Steel, 316	Standard: DIN Pressure Rating: PN16 End Type: Double flange

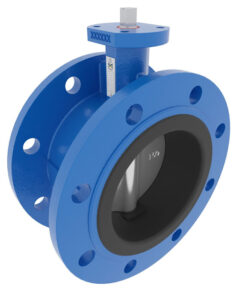

Butterfly Valve DF DN65 PN16 Item No.: M34749 Double flange type - bare stem	Seat: FPM/FKM Body: Nodular Cast Iron, GGG40 Disc: Stainless Steel, 316	Standard: DIN Pressure Rating: PN16 End Type: Double flange
Butterfly Valve DF DN80 PN16 Item No.: M34750 Double flange type - bare stem	Seat: FPM/FKM Body: Nodular Cast Iron, GGG40 Disc: Stainless Steel, 316	Standard: DIN Pressure Rating: PN16 End Type: Double flange

BUTTERFLY VALVES
