Name & Description	Material	Standard
Butterfly Valve L DN50 JIS 5K Item No.: M35194 Lug type - bare stem	Seat: FPM/FKM Body: Nodular Cast Iron, GGG40 Disc: Aluminium Bronze	Standard: JIS Pressure Rating: JIS 5K End Type: Lug
Butterfly Valve L DN40 JIS 5K Item No.: M35193 Lug type - bare stem	Seat: FPM/FKM Body: Nodular Cast Iron, GGG40 Disc: Aluminium Bronze	Standard: JIS Pressure Rating: JIS 5K End Type: Lug

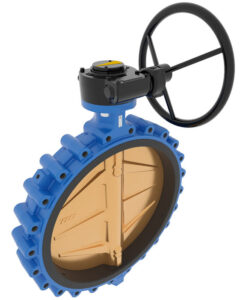

Butterfly valve L DN800 PN10 Item No.: M34195 Lug type - with gearbox	Seat: FPM/FKM Body: Nodular Cast Iron, GGG40 Disc: Aluminium Bronze	Standard: DIN Pressure Rating: PN10 End Type: Lug
Butterfly Valve L DN700 PN10 Item No.: M34194 Lug type - with gearbox	Seat: FPM/FKM Body: Nodular Cast Iron, GGG40 Disc: Aluminium Bronze	Standard: DIN Pressure Rating: PN10 End Type: Lug
Butterfly Valve L DN600 PN10 Item No.: M34193 Lug type - with gearbox	Seat: FPM/FKM Body: Nodular Cast Iron, GGG40 Disc: Aluminium Bronze	Standard: DIN Pressure Rating: PN10 End Type: Lug
Butterfly Valve L DN500 PN10 Item No.: M95485 Lug type - with gearbox	Seat: EPDM Body: Nodular Cast Iron, GGG40 Disc: Stainless Steel, Super Duplex	Standard: DIN Pressure Rating: PN10 End Type: Lug
Butterfly Valve L DN450 PN10 Item No.: M95484 Lug type - with gearbox	Seat: EPDM Body: Nodular Cast Iron, GGG40 Disc: Stainless Steel, Super Duplex	Standard: DIN Pressure Rating: PN10 End Type: Lug

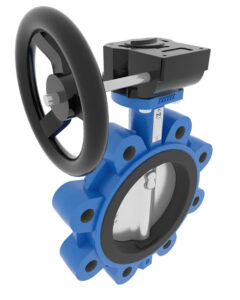

Butterfly Valve L DN400 PN10 Item No.: M95483 Lug type - with gearbox	Seat: EPDM Body: Nodular Cast Iron, GGG40 Disc: Stainless Steel, Super Duplex	Standard: DIN Pressure Rating: PN10 End Type: Lug
Butterfly Valve L DN350 PN10 Item No.: M95482 Lug type - with gearbox	Seat: EPDM Body: Nodular Cast Iron, GGG40 Disc: Stainless Steel, Super Duplex	Standard: DIN Pressure Rating: PN10 End Type: Lug
Butterfly Valve L DN300 PN10 Item No.: M95481 Lug type - with gearbox	Seat: EPDM Body: Nodular Cast Iron, GGG40 Disc: Stainless Steel, Super Duplex	Standard: DIN Pressure Rating: PN10 End Type: Lug
Butterfly Valve L DN250 PN10 Item No.: M95480 Lug type - with gearbox	Seat: EPDM Body: Nodular Cast Iron, GGG40 Disc: Stainless Steel, Super Duplex	Standard: DIN Pressure Rating: PN10 End Type: Lug
Butterfly Valve L DN200 PN10 Item No.: M95479 Lug type - with gearbox	Seat: EPDM Body: Nodular Cast Iron, GGG40 Disc: Stainless Steel, Super Duplex	Standard: DIN Pressure Rating: PN10 End Type: Lug
Butterfly Valve L DN700 PN10 Item No.: M95490 Lug type - bare stem	Seat: EPDM Body: Nodular Cast Iron, GGG40 Disc: Stainless Steel, Super Duplex	Standard: DIN Pressure Rating: PN10 End Type: Lug
Butterfly Valve L DN600 PN10 Item No.: M95470 Lug type - bare stem	Seat: EPDM Body: Nodular Cast Iron, GGG40 Disc: Stainless Steel, Super Duplex	Standard: DIN Pressure Rating: PN10 End Type: Lug
Butterfly Valve L DN500 PN10 Item No.: M95469 Lug type - bare stem	Seat: EPDM Body: Nodular Cast Iron, GGG40 Disc: Stainless Steel, Super Duplex	Standard: DIN Pressure Rating: PN10 End Type: Lug
Butterfly Valve L DN450 PN10 Item No.: M95468 Lug type - bare stem	Seat: EPDM Body: Nodular Cast Iron, GGG40 Disc: Stainless Steel, Super Duplex	Standard: DIN Pressure Rating: PN10 End Type: Lug
Butterfly Valve L DN400 PN10 Item No.: M95467 Lug type - bare stem	Seat: EPDM Body: Nodular Cast Iron, GGG40 Disc: Stainless Steel, Super Duplex	Standard: DIN Pressure Rating: PN10 End Type: Lug
Butterfly Valve L DN350 PN10 Item No.: M95466 Lug type - bare stem	Seat: EPDM Body: Nodular Cast Iron, GGG40 Disc: Stainless Steel, Super Duplex	Standard: DIN Pressure Rating: PN10 End Type: Lug
Butterfly Valve L DN300 PN10 Item No.: M95465 Lug type - bare stem	Seat: EPDM Body: Nodular Cast Iron, GGG40 Disc: Stainless Steel, Super Duplex	Standard: DIN Pressure Rating: PN10 End Type: Lug
Butterfly Valve L DN250 PN10 Item No.: M95464 Lug type - bare stem	Seat: EPDM Body: Nodular Cast Iron, GGG40 Disc: Stainless Steel, Super Duplex	Standard: DIN Pressure Rating: PN10 End Type: Lug
