Name & Description	Material	Standard
Butterfly Valve DF DN400 PN10 Item No.: M95896 Double flange type - with gearbox	Seat: EPDM Body: Nodular Cast Iron, GGG40 Disc: Aluminium Bronze	Standard: DIN Pressure Rating: PN10 End Type: Double flange

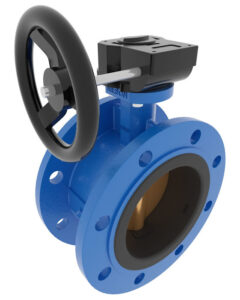

Butterfly Valve DF DN200 PN10 Item No.: M95892 Double flange type - with gearbox	Seat: EPDM Body: Nodular Cast Iron, GGG40 Disc: Aluminium Bronze	Standard: DIN Pressure Rating: PN10 End Type: Double flange
Butterfly Valve L DN150 PN16 Item No.: M34123 Lug type - with lever	Seat: FPM/FKM Body: Nodular Cast Iron, GGG40 Disc: Stainless Steel, 316	Standard: DIN Pressure Rating: PN16 End Type: Lug
Butterfly Valve L DN125 PN16 Item No.: M34122 Lug type - with lever	Seat: FPM/FKM Body: Nodular Cast Iron, GGG40 Disc: Stainless Steel, 316	Standard: DIN Pressure Rating: PN16 End Type: Lug
Butterfly Valve L DN100 PN16 Item No.: M34121 Lug type - with lever	Seat: FPM/FKM Body: Nodular Cast Iron, GGG40 Disc: Stainless Steel, 316	Standard: DIN Pressure Rating: PN16 End Type: Lug
Butterfly Valve L DN80 PN16 Item No.: M34120 Lug type - with lever	Seat: FPM/FKM Body: Nodular Cast Iron, GGG40 Disc: Stainless Steel, 316	Standard: DIN Pressure Rating: PN16 End Type: Lug
Butterfly Valve L DN65 PN16 Item No.: M34119 Lug type - with lever	Seat: FPM/FKM Body: Nodular Cast Iron, GGG40 Disc: Stainless Steel, 316	Standard: DIN Pressure Rating: PN16 End Type: Lug
Butterfly Valve L DN50 PN16 Item No.: M34118 Lug type - with lever	Seat: FPM/FKM Body: Nodular Cast Iron, GGG40 Disc: Stainless Steel, 316	Standard: DIN Pressure Rating: PN16 End Type: Lug
Butterfly Valve L DN40 PN16 Item No.: M34117 Lug type - with lever	Seat: FPM/FKM Body: Nodular Cast Iron, GGG40 Disc: Stainless Steel, 316	Standard: DIN Pressure Rating: PN16 End Type: Lug
Butterfly Valve L DN65 JIS 5K Item No.: M35557 Lug type - with lever	Seat: FPM/FKM Body: Nodular Cast Iron, GGG40 Disc: Stainless Steel, 316	Standard: JIS Pressure Rating: JIS 5K End Type: Lug
Butterfly Valve L DN50 JIS 5K Item No.: M35556 Lug type - with lever	Seat: FPM/FKM Body: Nodular Cast Iron, GGG40 Disc: Stainless Steel, 316	Standard: JIS Pressure Rating: JIS 5K End Type: Lug
Butterfly Valve L DN200 PN16 Item No.: M34768 Lug type - with lever	Seat: FPM/FKM Body: Nodular Cast Iron, GGG40 Disc: Aluminium Bronze	Standard: DIN Pressure Rating: PN16 End Type: Lug
Butterfly Valve L DN150 PN16 Item No.: M34102 Lug type - with lever	Seat: FPM/FKM Body: Nodular Cast Iron, GGG40 Disc: Aluminium Bronze	Standard: DIN Pressure Rating: PN16 End Type: Lug
Butterfly Valve L DN125 PN16 Item No.: M34101 Lug type - with lever	Seat: FPM/FKM Body: Nodular Cast Iron, GGG40 Disc: Aluminium Bronze	Standard: DIN Pressure Rating: PN16 End Type: Lug
Butterfly Valve L DN100 PN16 Item No.: M34100 Lug type - with lever	Seat: FPM/FKM Body: Nodular Cast Iron, GGG40 Disc: Aluminium Bronze	Standard: DIN Pressure Rating: PN16 End Type: Lug
Butterfly Valve L DN80 PN16 Item No.: M34099 Lug type - with lever	Seat: FPM/FKM Body: Nodular Cast Iron, GGG40 Disc: Aluminium Bronze	Standard: DIN Pressure Rating: PN16 End Type: Lug
Butterfly Valve L DN65 PN16 Item No.: M34098 Lug type - with lever	Seat: FPM/FKM Body: Nodular Cast Iron, GGG40 Disc: Aluminium Bronze	Standard: DIN Pressure Rating: PN16 End Type: Lug
Butterfly Valve L DN50 PN16 Item No.: M34097 Lug type - with lever	Seat: FPM/FKM Body: Nodular Cast Iron, GGG40 Disc: Aluminium Bronze	Standard: DIN Pressure Rating: PN16 End Type: Lug
Butterfly Valve L DN40 PN16 Item No.: M34096 Lug type - with lever	Seat: FPM/FKM Body: Nodular Cast Iron, GGG40 Disc: Aluminium Bronze	Standard: DIN Pressure Rating: PN16 End Type: Lug
Butterfly Valve L DN150 JIS 10K Item No.: M35652 Lug type - with lever	Seat: FPM/FKM Body: Nodular Cast Iron, GGG40 Disc: Aluminium Bronze	Standard: JIS Pressure Rating: JIS 10K End Type: Lug
