| Product Group | 440595 |
| Top Flange Standard | ISO 5211 – F10 non-direct |
| Throughput Direction | Straight |
| Execution | Full Bore |
| Pressure Rating | 1000WOG |
| End Type | Butt welded |
| Standard | DIN |
| Application | Air, Boiler feedwater, Cargo oil, Condensate, Corrosive fluids, Flammable hydraulic oil, Fuel oil, Gas, Lubricating oil, Non-flammable hydraulic fluid, Sea Water, Water |
| Size | 100 |
| Material Seat | PTFE |
| Material Body | Stainless Steel, 316 |

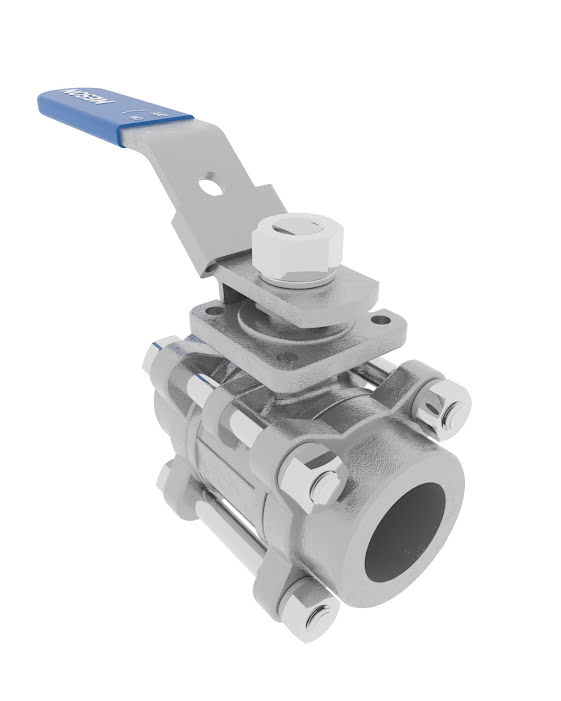

Ball Valve 4″ 1000WOG
Straight type
Details
Three piece, full bore, Stainless Steel body ball valve with Stainless Steel ball and PTFE seat. Butt welded ends. With non-direct mounting pad.

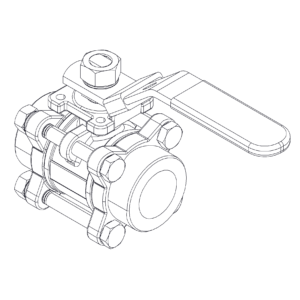

PARTSLIST AND DETAILS
Partslist

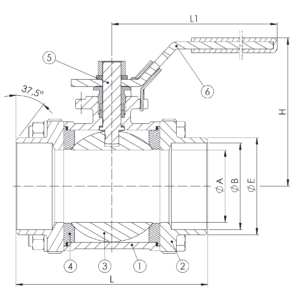

| No | Part | Material | Code |
|---|---|---|---|
| 1 | Body | Stainless Steel | ASTM A351-CF8M |
| 2 | Cap | Stainless Steel | ASTM A351-CF8M |
| 3 | Ball | Stainless Steel | ASTM A351-CF8M |
| 4 | Seat | PTFE | |
| 5 | Stem | Stainless Steel | AISI 316 |
| 6 | Handle | Stainless Steel, Plastic Cover | AISI 430 |
Details
| DN | Pressure Rating Id | L | L1 | Inch | H | ØA |
|---|---|---|---|---|---|---|
| 100 | 1000 | 231.4 | 325 | 4″ | 177 | 100 |
