| Product Group | 621792 |
| End Standard | DIN 2633 |
| Face To Face Standard | EN 558, series 14 |
| Inspection Standard | EN 12266 |
| Remark | Connection: PN16 |
| Throughput Direction | Straight |
| Pressure Rating | PN16 |
| End Type | Flanged |
| Design Code | ASME B16.34 |
| Standard | DIN |
| Application | Air, Boiler feedwater, Cargo oil, Condensate, Corrosive fluids, Flammable hydraulic oil, Fuel oil, Gas, Lubricating oil, Non-flammable hydraulic fluid, Sea Water, Steam, Thermal oil, Water |
| Size | 50 |
| Material Disc | Stainless Steel, 316 |
| Material Body | Stainless Steel, 316 |

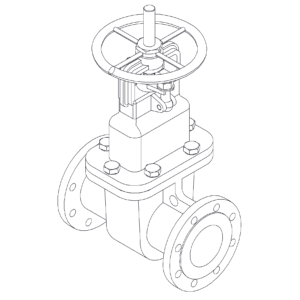

Gate Valve DN50 PN16
Details
Stainless Steel body gate valve, Stainless Steel wedge. Rising stem and bolted bonnet. Raised face flanges.

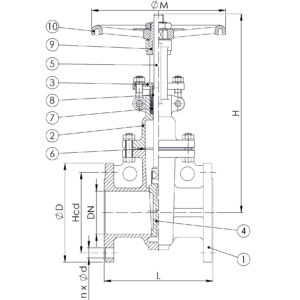

PARTSLIST AND DETAILS
Partslist
| No | Part | Material | Code |
|---|---|---|---|
| 1 | Body | Stainless Steel | 1.4408 |
| 2 | Bonnet | Stainless Steel | 1.4408 |
| 3 | Gland | Stainless Steel | 1.4308 |
| 4 | Wedge | Stainless Steel | 1.4408 |
| 5 | Stem | Stainless Steel | SUS316 |
| 6 | Bonnet Gasket | PTFE | |
| 7 | Gland Packing | PTFE | |
| 8 | Stem Bushing | PTFE | |
| 9 | Yoke Sleeve | Bronze | |
| 10 | Handwheel | Cast Iron | FCD |
Details
| DN | Pressure Rating Id | nxdd | Hcd |
|---|---|---|---|
| 50 | 16 | 4×18 | 125 |
| ØD | L | Kg | H | ØM |
|---|---|---|---|---|
| 165 | 150 | 11.6 | 330 | 200 |
