| Price View | Price Range |
|---|---|
| Product Group | 314122 |
| End Standard | ISO 228-1 |
| Max temperature | +30°C |
| Throughput Direction | Straight |
| Variant | SDSL with drain |
| Pressure Rating | PN16 |
| End Type | Threaded |
| Standard | DIN |
| Application | Sea Water, Water |
| Size | 25 |
| Material Seat | Leather |
| Material Body | Bronze |

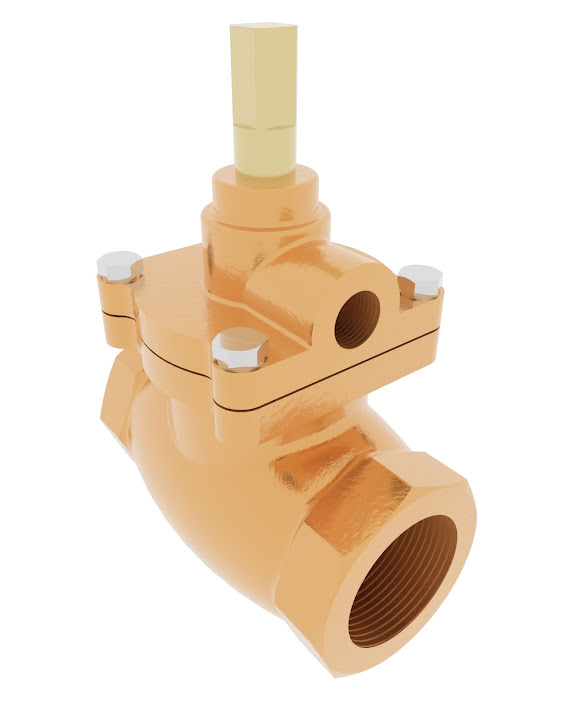

Globe Valve 1″ PN16
Straight type – SDSL with drain
Details
Straight type, Bronze RG5 body, soft seated globe valve with self-draining outlet side. Bolted bonnet. Female threaded ends.

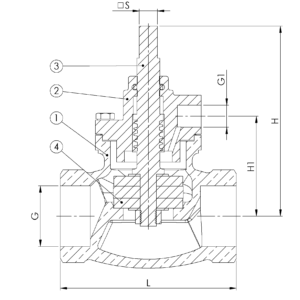

PARTSLIST AND DETAILS
Partslist
| No | Part | Material | Code |
|---|---|---|---|
| 1 | Body | Bronze | CC 491K |
| 2 | Bonnet | Bronze | CC 491K |
| 3 | Stem | Brass | CW 710R |
| 4 | Gasket | Leather |
Details
| DN | Pressure Rating Id | L | Kg |
|---|---|---|---|
| 25 | 16 | 90 | 1.1 |
| H | H1 | G | S | G1 |
|---|---|---|---|---|
| 125 | 50 | 1″ | 9 | 1/4″ |
