| Product Group | F-7353 |
| End Standard | JIS B2239 |
| Inspection Standard | JIS F7400 |
| Remark | Connection: JIS 5K |
| Throughput Direction | Straight |
| Variant | SDNR |
| Pressure Rating | JIS 5K |
| End Type | Flanged |
| Design Code | JIS F7305 |
| Standard | JIS |
| Application | Cargo oil, Flammable hydraulic oil, Fuel oil, Lubricating oil, Sea Water, Water |
| Size | 80 |
| Material Seat | Bronze |
| Material Disc | Bronze |
| Material Body | Cast Iron |

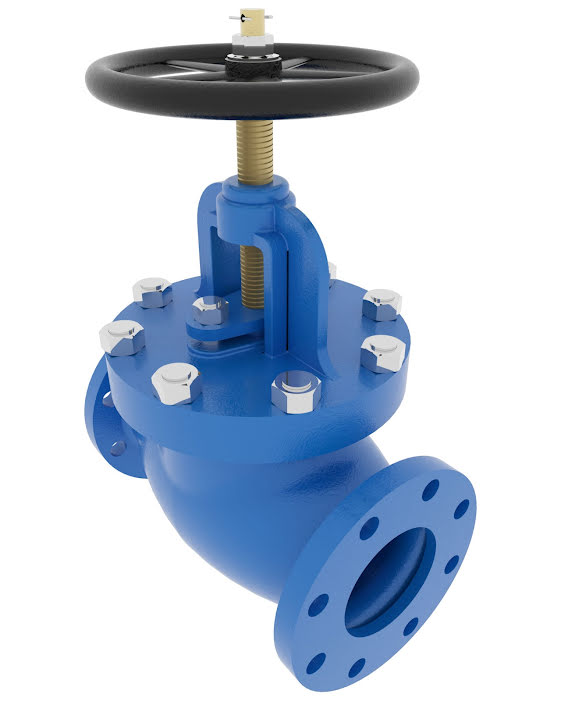

Globe Valve DN80 JIS 5K
Straight type – SDNR
Details
Straight type, Cast Iron body, metal seated globe valve with rising stem. Bolted bonnet. Flat face flanges.

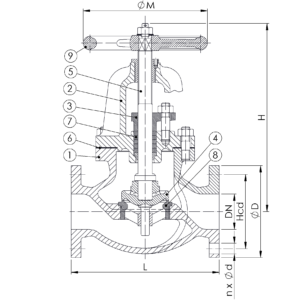

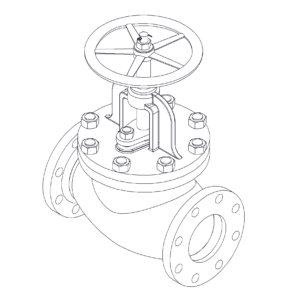

PARTSLIST AND DETAILS
Partslist
| No | Part | Material | Code |
|---|---|---|---|
| 1 | Body | Cast Iron | HT200 |
| 2 | Bonnet | Cast Iron | HT200 |
| 3 | Gland | Brass | H62 |
| 4 | Disc | Bronze | ZCuSn5Pb5Zn5 |
| 5 | Stem | Brass | H62 |
| 6 | Gasket | Graphite | |
| 7 | Packing | Graphite | |
| 8 | Sealing ring | Bronze | ZCuSn5Pb5Zn5 |
| 9 | Handwheel | Cast Iron | HT200 |
Details
| DN | Pressure Rating Id | nxdd | Hcd |
|---|---|---|---|
| 80 | 5 | 4×19 | 145 |
| ØD | L | Kg | H | ØM |
|---|---|---|---|---|
| 180 | 280 | 27.7 | 310 | 180 |
