| Price View | Price Range |
|---|---|
| Product Group | 357321 |
| End Standard | EN 1092-3 (Inlet), ISO 228-1 (Outlet) |
| Remark | Connection: PN10 |
| Throughput Direction | Angled |
| Pressure Rating | PN10 |
| End Type | Flanged/Threaded |
| Standard | DIN |
| Application | Boiler feedwater, Cargo oil, Condensate, Flammable hydraulic oil, Fuel oil, Lubricating oil, Non-flammable hydraulic fluid, Sea Water, Water |
| Size | 25 |
| Material Seat | NBR |
| Material Disc | Brass |
| Material Body | Bronze |

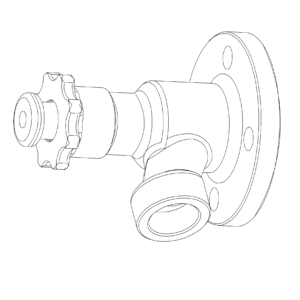

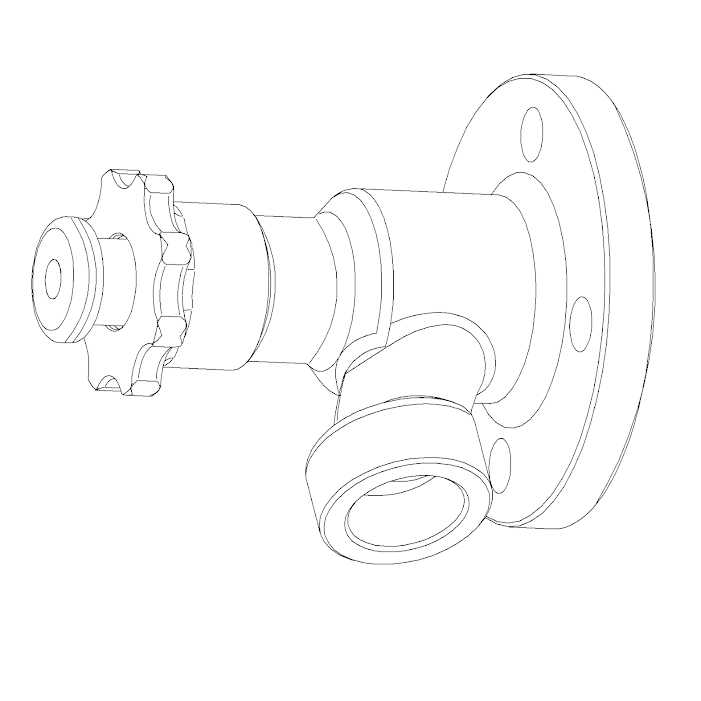

Self Closing Drain Valve DN25 PN10
Details
Bronze RG5 body, soft sealing self closing drain valve with push button operation. Flat face flanged inlet, BSPP female threaded outlet.

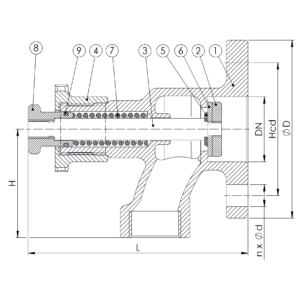

PARTSLIST AND DETAILS
Partslist
| No | Part | Material | Code |
|---|---|---|---|
| 1 | Body | Bronze | CC 491K |
| 2 | Disc | Brass | CW 602N |
| 3 | Stem | Brass | CW 602N |
| 4 | Locking Nut | Bronze | CC 491K |
| 5 | Washer | Brass | CW 602N |
| 6 | Disc Sealing | NBR | |
| 7 | Spring | Stainless Steel | 1.4001 |
| 8 | Push Button | Brass | CW 602N |
| 9 | O-Ring | NBR |
Details
| DN | Pressure Rating Id | nxdd | Hcd |
|---|---|---|---|
| 25 | 10 | 4×14 | 85 |
| ØD | L | Kg | Inch | H |
|---|---|---|---|---|
| 115 | 145 | 2.7 | 1″ | 75 |
