Name & Description	Material	Standard

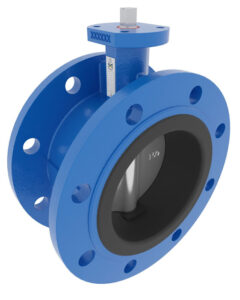

Butterfly Valve DF DN250 JIS 5K Item No.: M35272 Double flange type - bare stem	Seat: NBR Body: Nodular Cast Iron, GGG40 Disc: Stainless Steel, 316	Standard: JIS Pressure Rating: JIS 5K End Type: Double flange
Butterfly Valve DF DN200 JIS 5K Item No.: M35271 Double flange type - bare stem	Seat: NBR Body: Nodular Cast Iron, GGG40 Disc: Stainless Steel, 316	Standard: JIS Pressure Rating: JIS 5K End Type: Double flange
Butterfly Valve DF DN150 JIS 5K Item No.: M35270 Double flange type - bare stem	Seat: NBR Body: Nodular Cast Iron, GGG40 Disc: Stainless Steel, 316	Standard: JIS Pressure Rating: JIS 5K End Type: Double flange
Butterfly Valve DF DN125 JIS 5K Item No.: M35269 Double flange type - bare stem	Seat: NBR Body: Nodular Cast Iron, GGG40 Disc: Stainless Steel, 316	Standard: JIS Pressure Rating: JIS 5K End Type: Double flange
Butterfly Valve DF DN100 JIS 5K Item No.: M35268 Double flange type - bare stem	Seat: NBR Body: Nodular Cast Iron, GGG40 Disc: Stainless Steel, 316	Standard: JIS Pressure Rating: JIS 5K End Type: Double flange
Butterfly Valve DF DN80 JIS 5K Item No.: M35267 Double flange type - bare stem	Seat: NBR Body: Nodular Cast Iron, GGG40 Disc: Stainless Steel, 316	Standard: JIS Pressure Rating: JIS 5K End Type: Double flange
Butterfly Valve DF DN65 JIS 5K Item No.: M35266 Double flange type - bare stem	Seat: NBR Body: Nodular Cast Iron, GGG40 Disc: Stainless Steel, 316	Standard: JIS Pressure Rating: JIS 5K End Type: Double flange
Butterfly Valve DF DN50 JIS 5K Item No.: M35265 Double flange type - bare stem	Seat: NBR Body: Nodular Cast Iron, GGG40 Disc: Stainless Steel, 316	Standard: JIS Pressure Rating: JIS 5K End Type: Double flange
Butterfly Valve DF DN40 JIS 5K Item No.: M35264 Double flange type - bare stem	Seat: NBR Body: Nodular Cast Iron, GGG40 Disc: Stainless Steel, 316	Standard: JIS Pressure Rating: JIS 5K End Type: Double flange
Butterfly Valve DF DN150 PN16 Item No.: M34678 Double flange type - bare stem	Seat: NBR Body: Nodular Cast Iron, GGG40 Disc: Aluminium Bronze	Standard: DIN Pressure Rating: PN16 End Type: Double flange
Butterfly Valve DF DN125 PN16 Item No.: M34677 Double flange type - bare stem	Seat: NBR Body: Nodular Cast Iron, GGG40 Disc: Aluminium Bronze	Standard: DIN Pressure Rating: PN16 End Type: Double flange

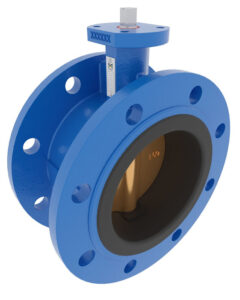

Butterfly Valve DF DN100 PN16 Item No.: M34676 Double flange type - bare stem	Seat: NBR Body: Nodular Cast Iron, GGG40 Disc: Aluminium Bronze	Standard: DIN Pressure Rating: PN16 End Type: Double flange
Butterfly Valve DF DN80 PN16 Item No.: M34675 Double flange type - bare stem	Seat: NBR Body: Nodular Cast Iron, GGG40 Disc: Aluminium Bronze	Standard: DIN Pressure Rating: PN16 End Type: Double flange
Butterfly Valve DF DN65 PN16 Item No.: M34674 Double flange type - bare stem	Seat: NBR Body: Nodular Cast Iron, GGG40 Disc: Aluminium Bronze	Standard: DIN Pressure Rating: PN16 End Type: Double flange
Butterfly Valve DF DN50 PN16 Item No.: M34673 Double flange type - bare stem	Seat: NBR Body: Nodular Cast Iron, GGG40 Disc: Aluminium Bronze	Standard: DIN Pressure Rating: PN16 End Type: Double flange
Butterfly Valve L DN1000 PN6 Item No.: M36301 Lug type - with gearbox	Seat: FPM/FKM Body: Nodular Cast Iron, GGG40 Disc: Aluminium Bronze	Standard: DIN Pressure Rating: PN6 End Type: Lug
Butterfly Valve L DN500 PN10 Item No.: M34192 Lug type - with gearbox	Seat: FPM/FKM Body: Nodular Cast Iron, GGG40 Disc: Aluminium Bronze	Standard: DIN Pressure Rating: PN10 End Type: Lug
Butterfly Valve L DN450 JIS 10K Item No.: M93510 Lug type - with gearbox	Seat: NBR Body: Nodular Cast Iron, GGG40 Disc: Aluminium Bronze	Standard: JIS Pressure Rating: JIS 10K End Type: Lug
Butterfly Valve L DN150 JIS 10K Item No.: M34899 Lug type - bare stem	Seat: EPDM Body: Nodular Cast Iron, GGG40 Disc: Stainless Steel, 316	Standard: JIS Pressure Rating: JIS 10K End Type: Lug
Butterfly Valve L DN125 JIS 10K Item No.: M34898 Lug type - bare stem	Seat: EPDM Body: Nodular Cast Iron, GGG40 Disc: Stainless Steel, 316	Standard: JIS Pressure Rating: JIS 10K End Type: Lug

BUTTERFLY VALVES
