Name & Description	Material	Standard
Swing Check Valve DN100 PN16 Item No.: M82007 Wafer type	Seat: NBR Body: Aluminium Bronze Disc: Aluminium Bronze	Standard: DIN Pressure Rating: PN16 End Type: Wafer
Swing Check Valve DN80 PN16 Item No.: M82006 Wafer type	Seat: NBR Body: Aluminium Bronze Disc: Aluminium Bronze	Standard: DIN Pressure Rating: PN16 End Type: Wafer
Swing Check Valve DN65 PN16 Item No.: M82005 Wafer type	Seat: NBR Body: Aluminium Bronze Disc: Aluminium Bronze	Standard: DIN Pressure Rating: PN16 End Type: Wafer

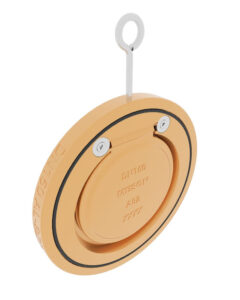

Swing Check Valve DN50 PN16 Item No.: M82004 Wafer type	Seat: NBR Body: Aluminium Bronze Disc: Aluminium Bronze	Standard: DIN Pressure Rating: PN16 End Type: Wafer

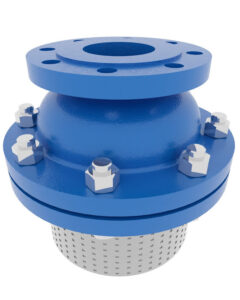

Foot Valve DN40 PN10 Item No.: 60-00000742 Details Cast Iron body, combination of screened suction inlet and…	Seat: EPDM Body: Cast Iron Disc: Cast Iron	Standard: DIN Pressure Rating: PN10 End Type: Flanged
Swing Check Valve DN40 PN16 Item No.: M82003 Wafer type	Seat: NBR Body: Aluminium Bronze Disc: Aluminium Bronze	Standard: DIN Pressure Rating: PN16 End Type: Wafer
Disc Check Valve DN25 PN40 Item No.: 60-00000792 Wafer type	Seat: NA Body: Stainless Steel, 316 Disc: Stainless Steel, 304	Standard: DIN Pressure Rating: PN40 End Type: Wafer
Dual Plate Check Valve DN150 ANSI 150 Item No.: 60-00000285 Wafer type	Seat: FPM/FKM Body: Stainless Steel, 316 Disc: Stainless Steel, 316	Standard: ANSI Pressure Rating: ANSI 150 End Type: Wafer
Dual Plate Check Valve DN100 ANSI 150 Item No.: 60-00000284 Wafer type	Seat: FPM/FKM Body: Stainless Steel, 316 Disc: Stainless Steel, 316	Standard: ANSI Pressure Rating: ANSI 150 End Type: Wafer
Swing Check Valve DN200 PN10 Item No.: 60-00000127 Short type	Seat: NBR Body: Nodular Cast Iron, GGG40.3 Disc: Bronze	Standard: DIN Pressure Rating: PN10 End Type: Flanged
Swing Check Valve DN150 PN16 Item No.: 60-00000143 Short type	Seat: NBR Body: Nodular Cast Iron, GGG40.3 Disc: Bronze	Standard: DIN Pressure Rating: PN16 End Type: Flanged
Swing Check Valve DN125 PN16 Item No.: 60-00000142 Short type	Seat: NBR Body: Nodular Cast Iron, GGG40.3 Disc: Bronze	Standard: DIN Pressure Rating: PN16 End Type: Flanged
Swing Check Valve DN100 PN16 Item No.: 60-00000141 Short type	Seat: NBR Body: Nodular Cast Iron, GGG40.3 Disc: Bronze	Standard: DIN Pressure Rating: PN16 End Type: Flanged
Disc Check Valve DN125 PN25 Item No.: 60-00000720 Wafer type	Seat: NA Body: Stainless Steel, 316 Disc: Stainless Steel, 316	Standard: DIN Pressure Rating: PN25 End Type: Wafer
Swing Check Valve DN80 PN16 Item No.: 60-00000140 Short type	Seat: NBR Body: Nodular Cast Iron, GGG40.3 Disc: Bronze	Standard: DIN Pressure Rating: PN16 End Type: Flanged
Ball Check Valve DN50 PN10 Item No.: 60-00000712 Details Cast Iron body ball check valve. NBR lined ball…	Seat: NA Body: Cast Iron Disc: NA	Standard: DIN Pressure Rating: PN10 End Type: Flanged
Swing Check Valve DN65 PN16 Item No.: 60-00000139 Short type	Seat: NBR Body: Nodular Cast Iron, GGG40.3 Disc: Bronze	Standard: DIN Pressure Rating: PN16 End Type: Flanged
Swing Check Valve DN50 PN16 Item No.: 60-00000138 Short type	Seat: NBR Body: Nodular Cast Iron, GGG40.3 Disc: Bronze	Standard: DIN Pressure Rating: PN16 End Type: Flanged
Swing Check Valve DN40 PN16 Item No.: 60-00000137 Short type	Seat: NBR Body: Nodular Cast Iron, GGG40.3 Disc: Bronze	Standard: DIN Pressure Rating: PN16 End Type: Flanged
Swing Check Valve DN32 PN16 Item No.: 60-00000136 Short type	Seat: NBR Body: Nodular Cast Iron, GGG40.3 Disc: Bronze	Standard: DIN Pressure Rating: PN16 End Type: Flanged

CHECK VALVES
