Name & Description	Material	Standard
Swing Check Valve DN225 PN16 Item No.: 60-00000135 Short type	Seat: NBR Body: Nodular Cast Iron, GGG40.3 Disc: Bronze	Standard: DIN Pressure Rating: PN16 End Type: Flanged
Swing Check Valve DN125 PN16 Item No.: 60-00000113 Wafer type	Seat: NA Body: Stainless Steel, 316 Disc: Stainless Steel, 316	Standard: DIN Pressure Rating: PN16 End Type: Wafer
Swing Check Valve DN65 PN16 Item No.: 60-00000110 Wafer type	Seat: NA Body: Stainless Steel, 316 Disc: Stainless Steel, 316	Standard: DIN Pressure Rating: PN16 End Type: Wafer
Swing Check Valve DN50 PN16 Item No.: 60-00000035 Details RG5 body swing check valve with metal sealing. Screwed…	Seat: NA Body: Bronze Disc: Brass	Standard: DIN Pressure Rating: PN16 End Type: Flanged
Swing Check Valve DN40 PN16 Item No.: 60-00000034 Details RG5 body swing check valve with metal sealing. Screwed…	Seat: NA Body: Bronze Disc: Brass	Standard: DIN Pressure Rating: PN16 End Type: Flanged
Swing Check Valve DN32 PN16 Item No.: 60-00000032 Details RG5 body swing check valve with metal sealing. Screwed…	Seat: NA Body: Bronze Disc: Brass	Standard: DIN Pressure Rating: PN16 End Type: Flanged

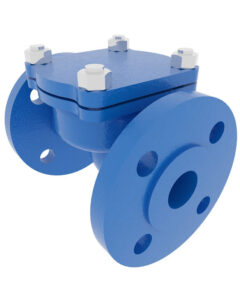

Lift Check Valve DN40 PN16 Item No.: 60-00000616 Details Nodular Cast Iron body, metal seated lift check valve…	Seat: Bronze Body: Nodular Cast Iron, GGG40.3 Disc: Bronze	Standard: DIN Pressure Rating: PN16 End Type: Flanged

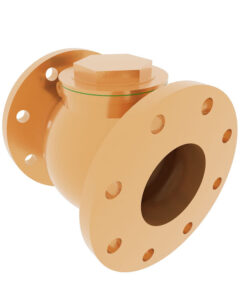

Swing Check Valve DN25 PN16 Item No.: 60-00000031 Details RG5 body swing check valve with metal sealing. Screwed…	Seat: NA Body: Bronze Disc: Brass	Standard: DIN Pressure Rating: PN16 End Type: Flanged
Swing Check Valve DN150 PN16 Item No.: M96189 Details Cast Iron body, NBR sealing swing check valve with…	Seat: NBR Body: Cast Iron Disc: Stainless Steel, 304	Standard: DIN Pressure Rating: PN16 End Type: Flanged
Swing Check Valve DN15 PN16 Item No.: 60-00000029 Details RG5 body swing check valve with metal sealing. Screwed…	Seat: NA Body: Bronze Disc: Brass	Standard: DIN Pressure Rating: PN16 End Type: Flanged
Swing Check Valve 1 ½” 200WOG Item No.: 60-00000027 Details Stainless Steel body swing check valve with metal sealing…	Seat: NA Body: Stainless Steel, 316 Disc: Stainless Steel, 316	Standard: DIN Pressure Rating: 200WOG End Type: Threaded
Swing Check Valve 1 ¼” 200WOG Item No.: 60-00000026 Details Stainless Steel body swing check valve with metal sealing…	Seat: NA Body: Stainless Steel, 316 Disc: Stainless Steel, 316	Standard: DIN Pressure Rating: 200WOG End Type: Threaded
Swing Check Valve 1″ 200WOG Item No.: 60-00000025 Details Stainless Steel body swing check valve with metal sealing…	Seat: NA Body: Stainless Steel, 316 Disc: Stainless Steel, 316	Standard: DIN Pressure Rating: 200WOG End Type: Threaded
Swing Check Valve ¾” 200WOG Item No.: 60-00000024 Details Stainless Steel body swing check valve with metal sealing…	Seat: NA Body: Stainless Steel, 316 Disc: Stainless Steel, 316	Standard: DIN Pressure Rating: 200WOG End Type: Threaded
Swing Check Valve ½” 200WOG Item No.: 60-00000023 Details Stainless Steel body swing check valve with metal sealing…	Seat: NA Body: Stainless Steel, 316 Disc: Stainless Steel, 316	Standard: DIN Pressure Rating: 200WOG End Type: Threaded

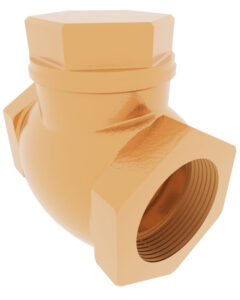

Swing Check Valve 2″ PN16 Item No.: 60-00000013 Details RG5 body swing check valve with PTFE soft sealing…	Seat: PTFE Body: Bronze Disc: Brass	Standard: DIN Pressure Rating: PN16 End Type: Threaded
Swing Check Valve 1 ½” PN16 Item No.: 60-00000012 Details RG5 body swing check valve with PTFE soft sealing…	Seat: PTFE Body: Bronze Disc: Brass	Standard: DIN Pressure Rating: PN16 End Type: Threaded
Swing Check Valve 1 ¼” PN16 Item No.: 60-00000010 Details RG5 body swing check valve with PTFE soft sealing…	Seat: PTFE Body: Bronze Disc: Brass	Standard: DIN Pressure Rating: PN16 End Type: Threaded
Piston Check Valve ¼” PN40 Item No.: 60-00000604 Y-type	Seat: PTFE Body: Stainless Steel, 316 Disc: Stainless Steel, 316	Standard: DIN Pressure Rating: PN40 End Type: Threaded
Swing Check Valve 1″ PN16 Item No.: 60-00000009 Details RG5 body swing check valve with PTFE soft sealing…	Seat: PTFE Body: Bronze Disc: Brass	Standard: DIN Pressure Rating: PN16 End Type: Threaded

CHECK VALVES
